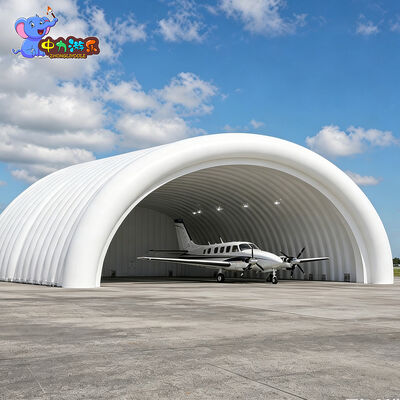

This portable inflatable aircraft hangar is designed for general aviation operators, private aircraft owners, flight schools and temporary aviation projects that require covered aircraft storage without constructing a permanent hangar.

The sealed inflatable air rib structure creates a large clear-span interior for aircraft parking, protection and selected service activities. Hangar dimensions and entrance clearance can be customized according to the aircraft wingspan, overall length, tail height and available installation site.

The structure can be considered for projects where temporary installation, dismantling and future relocation are important requirements.

Sealed Air Rib Hangar Structure
密封空气肋形仓库结构

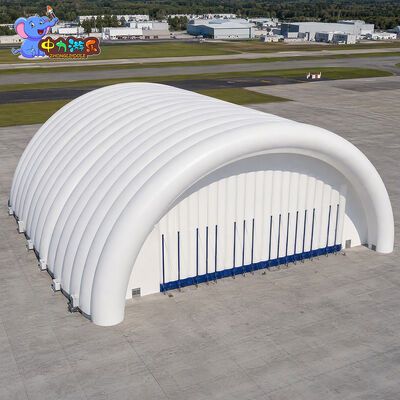

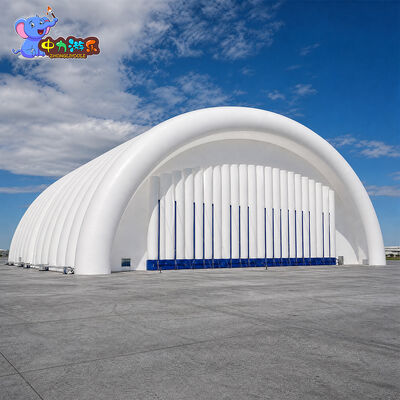

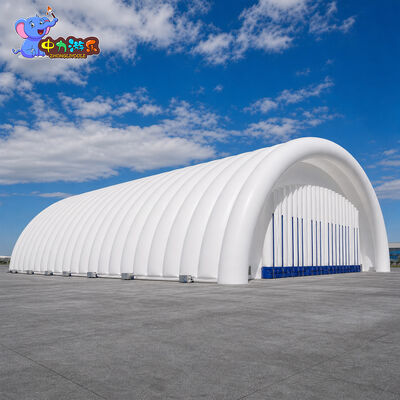

The hangar is supported by multiple sealed inflatable air ribs forming the main arched structure.

During installation, the air ribs are inflated to the specified working pressure. Under normal operating conditions, continuous blower operation is not required.

Periodic pressure inspection and supplementary inflation may be required because of temperature changes, long-term air permeability and operating conditions.

The air-rib design creates a clear central aircraft area without conventional internal columns occupying the main storage space.

Aircraft Storage and Protection

Aircraft storage requires sufficient space around the complete aircraft profile.

The hangar can be configured for:

• Private aircraft storage
• General aviation aircraft
• Flight training aircraft
• Temporary airport storage
• Seasonal aircraft protection
• Aviation project equipment
• Selected inspection activities
• Temporary service operations

The final shelter dimensions should be selected according to the aircraft rather than using only a standard external tent size.

Designed Around Aircraft Dimensions

Before determining the hangar size, buyers should provide:

• Aircraft model
• Wingspan
• Overall aircraft length
• Tail height
• Propeller or engine clearance
• Required working space
• Aircraft towing method
• Available installation area

Providing an aircraft dimensional drawing can make preliminary configuration more accurate.

Custom Aircraft Entrance  定制飞机入口

The entrance must provide sufficient horizontal and vertical clearance for safe aircraft movement.

Entrance dimensions should consider:

• Complete aircraft wingspan
• Tail height
• Propeller or engine position
• Towing equipment
• Ground handling equipment
• Required operational clearance

A large open-front or customized entrance configuration can be developed according to the aircraft and site layout.

Portable and Relocatable Aviation Shelter
可携带且易于移动式的航空避难所

For temporary aviation projects, portability should be considered in terms of dismantling, transportation and reinstallation rather than simply the physical weight of the structure.

Depending on the final configuration, the hangar can be planned for:

• Temporary airport capacity
• Seasonal aircraft storage
• Remote aviation projects
• Flight school operations
• Private aviation facilities
• Project-based aircraft protection

When the structure is relocated, the new installation site and anchoring conditions should be evaluated before reinstallation.

Custom Hangar Configuration

This product is manufactured according to project requirements rather than one fixed standard size.

Customization may include:

• Overall width
• Overall length
• Internal height
• Clear span
• Air rib configuration
• Aircraft entrance dimensions
• Front and rear enclosure
• Personnel access
• Equipment access
• Fabric specification
• Anchoring arrangement
• Exterior color
• Logo or project identification

The final configuration should follow the actual aircraft dimensions, operational requirements and installation environment.

Site and Anchoring Requirements

The anchoring solution depends on the actual installation conditions.

Important information includes:

• Installation surface
• Available site dimensions
• Ground conditions
• Local maximum wind conditions
• Snow load requirements, if applicable
• Operating temperature
• Expected installation period
• Aircraft movement route
• Local engineering requirements

Concrete, asphalt and prepared ground may require different anchoring arrangements.

Site information should therefore be reviewed before the final hangar configuration is confirmed.

Information Required for a Custom Quotation

Please provide:

1. Aircraft Model
Aircraft type and model if available.

2. Aircraft Dimensions
Wingspan, overall length and tail height.

3. Required Hangar Size
Preferred width × length × internal height.

4. Application
Aircraft storage, flight school use, temporary airport capacity or another aviation application.

5. Entrance Requirements
Required opening width and height.

6. Aircraft Movement
Towing equipment and required operating clearance.

7. Installation Location
Country, city and airport or project environment.

8. Installation Surface
Concrete, asphalt, prepared ground or other surface.

9. Environmental Conditions
Maximum wind speed, snow requirements and operating temperature if applicable.

10. Relocation Requirement
Whether the hangar may need to be dismantled and installed at another location.

Providing these details allows the hangar dimensions, entrance clearance, air-rib configuration and anchoring system to be evaluated according to the actual aircraft and project.

FAQ

What is a portable inflatable aircraft hangar?

A portable inflatable aircraft hangar uses sealed inflatable air ribs to create temporary clear-span covered space for aircraft storage and aviation operations.

What types of aircraft can be stored inside?

The hangar can be customized for different aircraft according to wingspan, overall length, tail height and required operating clearance.

Is this mainly for aircraft storage or maintenance?

This model is primarily positioned for temporary aircraft storage and general aviation applications. Selected inspection and service activities can also be considered when sufficient working clearance is included.

Does the hangar require continuous blower operation?

No. The sealed air ribs are inflated to the specified working pressure and normally do not require continuous blower operation. Periodic pressure inspection and supplementary inflation may still be necessary.

Can the hangar be dismantled and moved?

Depending on the final configuration, it can be planned for dismantling, transportation and reinstallation. The new installation site should be evaluated before reuse.

Can the entrance size be customized?

Yes. Entrance width and height can be developed according to the aircraft wingspan, tail height, towing equipment and required clearance.

Can it be used by flight schools or private aviation operators?

Yes. Typical applications can include flight training aircraft, private aviation, temporary aircraft storage and general aviation facilities.

How is the structure anchored?

The anchoring solution depends on hangar dimensions, installation surface, ground conditions and local environmental requirements.

What information is required for quotation?

Please provide the aircraft model or dimensions, required hangar size, entrance requirements, installation location, surface conditions, environmental conditions and relocation requirements.

Custom Portable Aircraft Hangar for Your Project

For general aviation, private aircraft storage, flight schools and temporary aviation facilities, the hangar should be developed around the actual aircraft and installation site.

Send us your aircraft model or dimensions, required storage space, installation location and relocation requirements, and we can evaluate a suitable portable inflatable aircraft hangar configuration.
