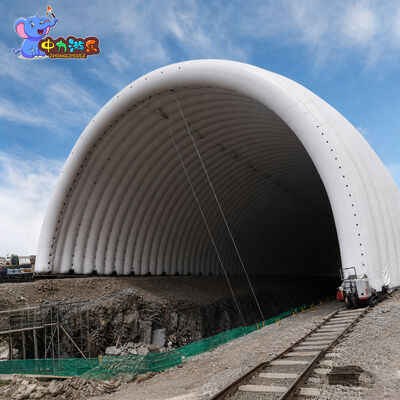

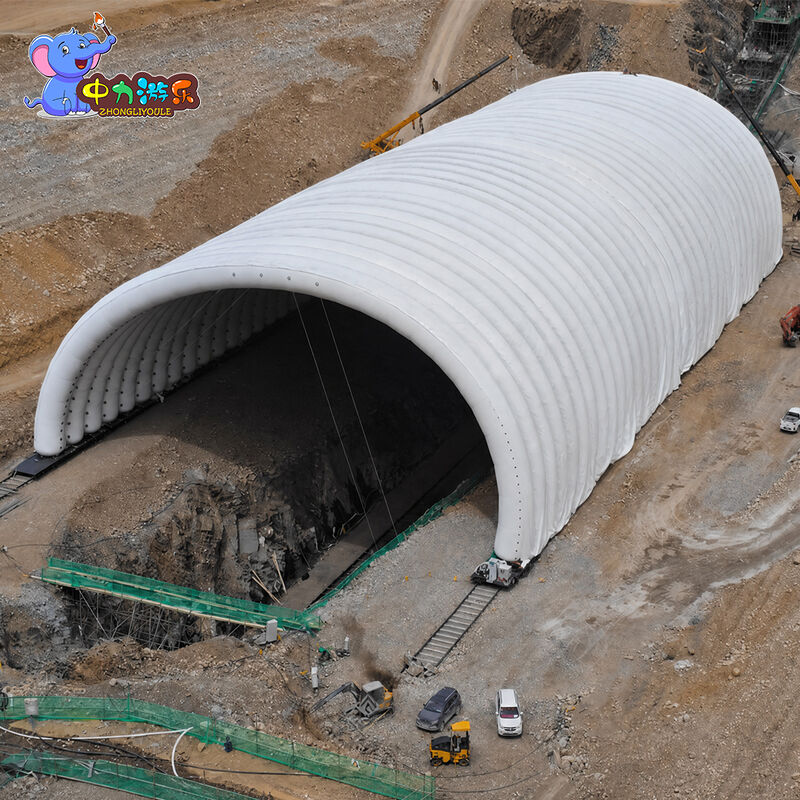

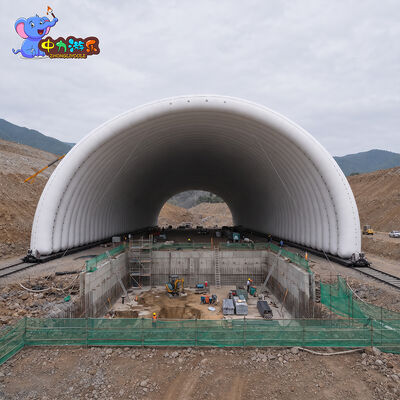

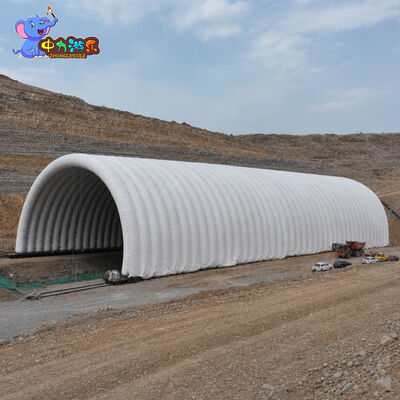

This inflatable excavation shelter is designed for foundation pit construction, excavation work, civil engineering and temporary construction projects that require a large covered working area.

The sealed inflatable air rib structure creates a clear-span space above the work zone, allowing construction machinery, materials and personnel to operate with minimal internal structural obstruction.

The shelter can be customized according to the foundation pit dimensions, required span, machinery clearance, entrance size and installation conditions.

Sealed Air Rib Construction Structure

The shelter is supported by a series of sealed inflatable air ribs forming the main arch structure.

During installation, the air ribs are inflated to the required working pressure. Under normal operating conditions, a continuous blower is not required.

Periodic pressure checks and supplementary inflation may be necessary because of temperature changes, long-term air permeability and operating conditions.

Unlike an air-supported dome, this structure does not rely on continuous positive air pressure throughout the entire enclosed interior.

Foundation Pit and Excavation Applications

Typical applications include:

• Foundation pit construction
• Excavation projects
• Civil engineering works
• Underground construction
• Concrete work areas
• Infrastructure projects
• Temporary worksite protection
• Equipment installation areas

The structure is particularly suitable for projects that require temporary coverage over a large excavation or active construction area.

Clear-Span Space for Construction Machinery

Construction projects often require excavators, loaders, trucks and other equipment to operate within the covered area.

The shelter dimensions can therefore be developed according to:

• Foundation pit width and length
• Required clear span
• Machinery operating height
• Equipment turning and movement space
• Vehicle access
• Safety clearance
• Available installation area

For large equipment, buyers should provide the maximum machine width and height before the final shelter configuration is confirmed.

Custom Machinery Access

Entrance design is an important part of an excavation shelter project.

Available configurations may include:

• Fully open front
• Open rear
• Partial end-wall enclosure
• Custom machinery entrance
• Personnel access
• Additional side access

Entrance width and height should be determined according to the largest equipment that needs to enter or operate beneath the shelter.

Temporary Weather Protection for Construction Work

The shelter can help reduce direct exposure of the construction area to rain, sunlight and changing outdoor conditions.

This may provide a more controlled working environment for selected excavation, foundation and civil engineering activities.

The final structure should always be designed according to the actual project environment, site conditions and engineering requirements.

Custom Size and Project Configuration

This product is manufactured according to project requirements rather than one fixed standard size.

Customization can include:

• Overall width
• Overall length
• Internal height
• Clear span
• Air rib configuration
• Entrance dimensions
• End-wall configuration
• Additional access openings
• Fabric options
• Anchoring arrangement
• Color
• Logo or project identification

For irregular or large foundation pits, drawings and site dimensions can be provided for project evaluation.

Site and Anchoring Requirements

The anchoring solution depends on the actual installation environment.

Important factors include:

• Ground conditions
• Shelter dimensions
• Foundation pit layout
• Installation surface
• Local wind conditions
• Snow requirements, if applicable
• Expected operating period
• Machinery access

Site information should be confirmed before the final structure and anchoring configuration are determined.

Information Required for a Custom Quotation

To evaluate the project and recommend a suitable configuration, please provide:

1. Foundation Pit or Work Area Size
Length × width and pit dimensions.

2. Required Shelter Size
Required span, total length and internal height.

3. Construction Application
Excavation, foundation work, concrete work, equipment installation or other use.

4. Machinery Information
Largest excavator, loader, truck or equipment operating inside.

5. Entrance Requirements
Required entrance width and height.

6. Installation Location
Country, city and project environment.

7. Ground Conditions
Concrete, asphalt, soil or other installation surface.

8. Wind and Snow Conditions
Local maximum wind speed and snow requirements, if applicable.

9. Expected Installation Period

10. Destination Country or Port

Providing these details allows the shelter dimensions, machinery access, air-rib configuration and anchoring requirements to be evaluated according to the actual project.

FAQ

What is an inflatable excavation shelter?

An inflatable excavation shelter is a temporary construction structure supported by inflatable air ribs and designed to cover foundation pits, excavation zones and other active construction areas.

Does it require continuous blower operation?

No. The sealed air ribs are inflated to the required working pressure during installation. Continuous blower operation is normally not required, although periodic pressure checks and supplementary inflation may be necessary.

Is this the same as an air-supported dome?

No. This shelter uses sealed inflatable air ribs as the supporting structure and does not depend on continuous positive air pressure throughout the entire building.

Can the shelter size be customized?

Yes. Width, length, height, clear span and entrance dimensions can be developed according to the foundation pit and construction requirements.

Can excavators and construction machinery operate inside?

Yes. The shelter can be designed according to the dimensions and required operating clearance of excavators, loaders, trucks and other equipment.

Can the ends remain open?

Yes. Open-end, partially enclosed and customized entrance configurations can be considered according to equipment access and site requirements.

How is the shelter anchored?

The anchoring method depends on shelter dimensions, ground conditions, installation surface and environmental requirements.

Can the shelter be dismantled and reused?

Depending on the final structure and project conditions, the shelter can be planned for dismantling and reuse. Each new installation site should be evaluated before reinstallation.

What information is needed for quotation?

Please provide the foundation pit dimensions, required shelter size, machinery information, entrance requirements, installation location, ground conditions, local weather requirements and destination.

Custom Excavation Shelter for Your Construction Project

Whether the project involves a foundation pit, excavation area or temporary civil engineering worksite, the shelter can be developed according to the required span, machinery clearance and site conditions.

Send us your foundation pit dimensions, required shelter size, machinery information and installation location, and we can evaluate a suitable inflatable air rib construction shelter configuration.
