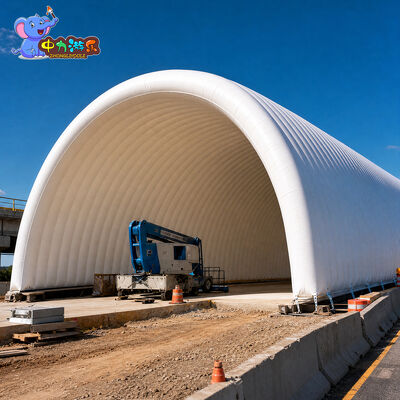

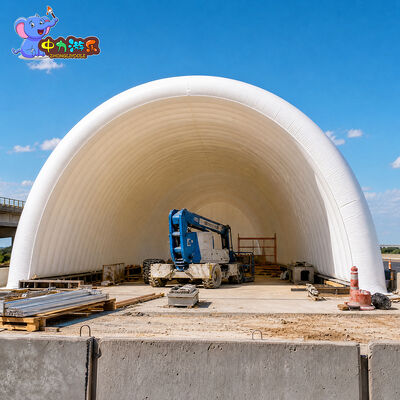

Inflatable Air Rib Construction Shelter for Road and Bridge Infrastructure Projects

This inflatable construction shelter is designed for road construction, bridge projects, highway rehabilitation and infrastructure works that require a large temporary covered working area.

The sealed inflatable air rib structure provides a clear-span interior for construction machinery, materials and personnel while reducing internal structural obstruction.

The shelter can be customized according to the work-zone dimensions, required span, project length, machinery clearance and installation conditions.

Sealed Air Rib Construction Structure

The main supporting structure consists of multiple sealed inflatable air ribs forming the arch of the shelter.

During installation, the air ribs are inflated to the specified working pressure. Under normal operating conditions, continuous blower operation is not required.

Periodic pressure inspection and supplementary inflation may be necessary because of temperature changes, long-term air permeability and operating conditions.

This structure is suitable for temporary infrastructure projects that require a large covered workspace without conventional internal columns.

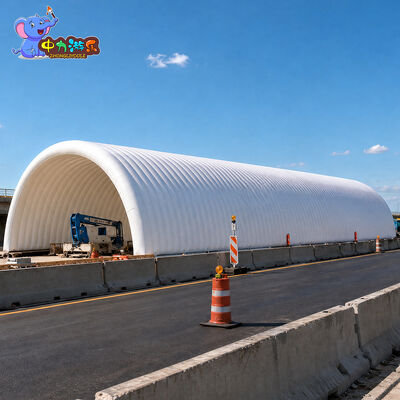

Road and Highway Construction Applications

Road projects often involve active work zones that move as construction progresses.

The shelter can provide temporary covered space for selected operations such as:

• Road rehabilitation
• Highway construction
• Concrete work
• Surface preparation
• Equipment installation
• Engineering inspection
• Maintenance activities
• Material preparation

The shelter length and width can be developed according to the actual road section rather than a fixed standard tent size.

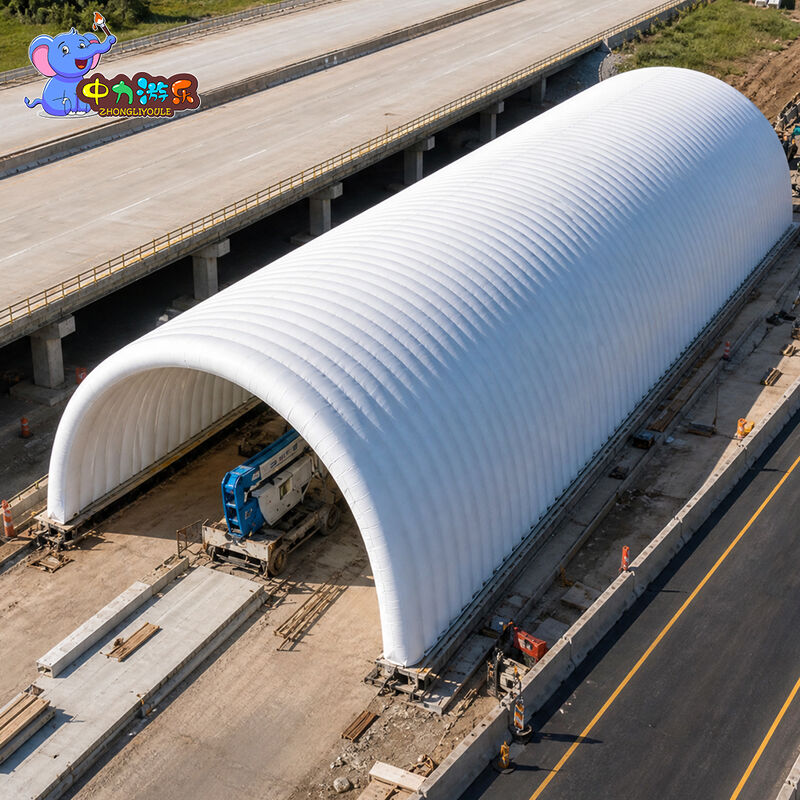

Bridge Construction Shelter

Bridge projects may require temporary coverage over long and relatively narrow work areas.

Depending on the project, the structure can be configured over:

• Bridge decks
• Construction platforms
• Maintenance sections
• Installation areas
• Equipment work zones
• Selected infrastructure sections

The required dimensions should be determined according to the available deck or work area, construction procedure and equipment clearance.

Long-Span Shelter for Linear Infrastructure Projects

Roads, bridges and highways differ from conventional warehouse projects because the working area is often linear.

For these projects, buyers should consider:

• Required covered length
• Available installation width
• Construction sequence
• Equipment movement
• Access direction
• Anchoring positions
• Relocation requirements

The structure can be customized for a specific project phase and, where conditions permit, dismantled and evaluated for reinstallation at another suitable work zone.

Clear-Span Space for Construction Machinery

Construction equipment requires sufficient lateral and overhead clearance.

The shelter can be designed according to the actual machinery operating inside or passing through the covered area.

Important information includes:

• Maximum equipment width
• Maximum equipment height
• Operating height
• Turning or movement space
• Access direction
• Required safety clearance

Large entrances or open-end configurations can be considered according to the equipment and construction process.

Custom Entrance and End-Wall Configuration

Different infrastructure projects require different levels of enclosure.

Available project configurations may include:

• Fully open end
• Partially enclosed end wall
• Construction vehicle access
• Equipment access
• Personnel entrance
• Additional side access

Entrance dimensions should be confirmed according to the largest vehicle or machine used within the project.

Temporary Weather Protection for Work Zones

The shelter can reduce direct exposure of selected construction activities, equipment and materials to rain, sunlight and changing outdoor conditions.

This can help create a defined covered working area for selected project stages.

Actual use and operating limits should always be evaluated according to the local weather conditions, project procedures and engineering requirements.

Custom Size and Project Configuration

This product is manufactured according to project requirements rather than one fixed standard dimension.

Customization can include:

• Overall width
• Overall length
• Internal height
• Clear span
• Air rib configuration
• Air rib spacing
• Entrance dimensions
• End-wall configuration
• Additional access
• Fabric specification
• Anchoring arrangement
• Exterior color
• Logo or project identification

For road and bridge projects, site drawings and basic dimensional sketches are recommended during preliminary evaluation.

Site and Anchoring Requirements

The anchoring solution depends on the actual installation environment.

Important factors include:

• Installation surface
• Available anchoring area
• Shelter dimensions
• Local wind conditions
• Snow requirements, if applicable
• Project duration
• Equipment traffic
• Engineering requirements

Road surfaces, bridge decks and prepared construction areas may require different anchoring solutions.

The final configuration should therefore be evaluated on a project-by-project basis.

Information Required for a Custom Quotation

For preliminary project evaluation, please provide:

1. Project Type
Road construction, bridge work, highway rehabilitation or other infrastructure project.

2. Work-Zone Dimensions
Required covered width and total project length.

3. Required Shelter Size
Width × length × internal height.

4. Machinery Information
Maximum equipment width, height and operating clearance.

5. Access Requirements
Required vehicle or equipment entrance dimensions.

6. Installation Surface
Road surface, concrete, bridge deck, prepared ground or other conditions.

7. Installation Location
Country, city and project environment.

8. Local Environmental Conditions
Maximum wind speed, snow load and operating temperature if applicable.

9. Expected Project Duration

10. Relocation Requirement
Whether the shelter may need to move to another work section.

Providing site drawings and machinery dimensions can help us evaluate the required span, entrance configuration and anchoring solution.

FAQ

What is an inflatable construction shelter?

It is a temporary construction structure supported by sealed inflatable air ribs and designed to provide covered working space for road, bridge and other infrastructure projects.

Can it be used for road construction?

Yes. Width, length and internal height can be customized according to the road work zone, machinery dimensions and required operating clearance.

Can it be used on bridge projects?

Yes. The shelter can be evaluated for selected bridge decks, construction platforms and other suitable infrastructure work areas according to the available installation and anchoring conditions.

Does it require continuous blower operation?

No. The sealed air ribs are inflated to the specified working pressure. Continuous blower operation is normally not required, although periodic pressure inspection and supplementary inflation may be necessary.

Can construction machinery operate inside?

Yes. The clear-span interior and access openings can be configured according to the machinery dimensions, operating height and required movement clearance.

Can the ends remain open?

Yes. Open-end, partially enclosed and customized access configurations can be considered according to the construction process and site conditions.

Can the shelter be relocated as road construction progresses?

Depending on the final configuration and site conditions, the shelter can be planned for dismantling and reuse. Each new installation location should be evaluated separately before reinstallation.

How is the shelter anchored?

The anchoring solution depends on the installation surface, shelter dimensions, available anchoring locations and local environmental requirements.

What information is required for quotation?

Please provide the project type, work-zone dimensions, required shelter size, machinery information, entrance requirements, installation surface, project location and local environmental conditions.

Custom Construction Shelter for Your Infrastructure Project

For road, bridge and highway projects, the shelter should be developed around the actual construction zone, machinery clearance and installation environment.

Send us your project type, required dimensions, machinery information and installation location, and we can evaluate a suitable inflatable air rib construction shelter configuration.
