Customization Steel Membrane Structure Steel Frame Tensile Membrane Structure

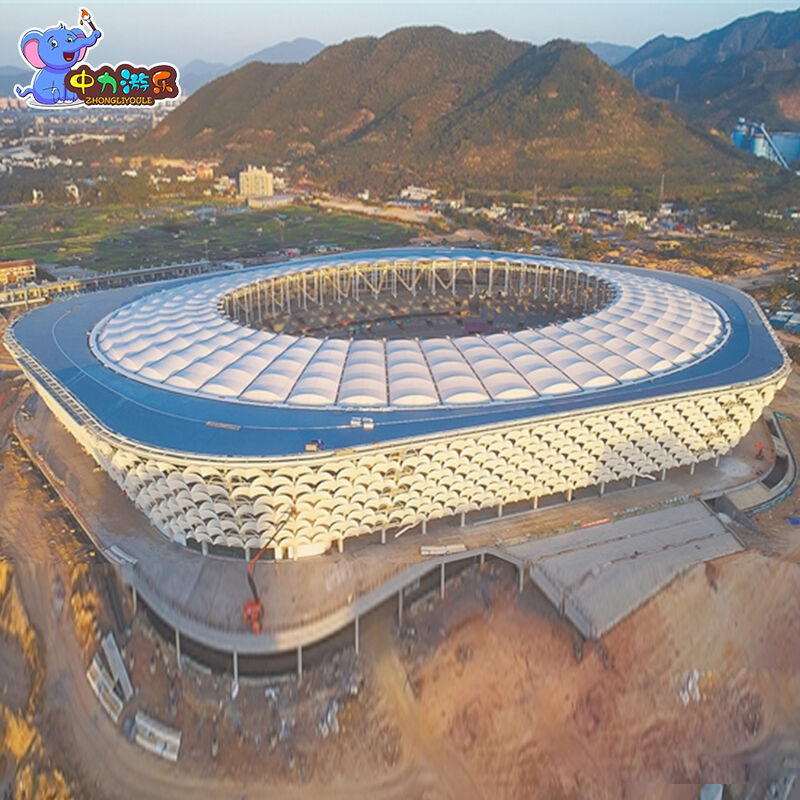

"The Large-scale Sports Stadium-level Steel Membrane Structure Building" is a flagship steel membrane structure project designed for large-scale sports events, cultural and entertainment performances, and urban landmarks. The building is inspired by "waves rolling" or "mountain ranges rising", and through the innovative application of large-span steel membrane structures, it integrates the natural rhythm with engineering aesthetics. It not only meets the functional requirements of professional sports venues but also, with its highly recognizable appearance, becomes the visual focus of the area, suitable for various sites such as mountains, coastal areas, and urban core zones.

​Natural Biomimicry · Rhythmic Aesthetics​:

The roof adopts continuous wave-like / layered membrane structure units, resembling the surging of waves or the stacking of mountains, creating a connection with the surrounding landscape environment; the facade is enhanced with repetitive arch-shaped / folded plate steel structure textures, intensifying the rhythmic feeling. From an aerial perspective, it looks like a "land art installation", while from the ground level, it seems like a "stilled musical score".

Large-span column-free space:

Relying on the mechanical advantages of the steel membrane structure, the roof achieves an over 100-meter-long column-free large-span, capable of accommodating the needs of tens of thousands of people for events such as watching, performing, or gathering. The space is spacious and unobstructed, providing ultimate protection for event organization, stage setup, and audience viewing.

Light and Ecology Integration:

The semi-transparent property of the membrane material combined with the structural gaps allows natural light to gently penetrate the interior, reducing daytime lighting energy consumption. The architectural outline forms a "borrowed scenery" effect with the mountains and the sky. At night, through the intelligent lighting system, it can present a stunning visual of "luminous mountains and sea", becoming a landmark of the city's night economy.

​Main Frame​:

Utilizes Q390/Q460 high-strength low-alloy steel. Through BIM parametric design and finite element analysis, the steel structure's load-bearing system is optimized to ensure stability under extreme conditions such as typhoons and earthquakes; the joints are connected with cast steel and high-strength bolts, balancing strength and construction efficiency.

Covering material:

Selected PTFE (polytetrafluoroethylene) membrane material:

• High strength: Tensile strength ≥ 500N/5cm, resistant to aging and UV rays, service life ≥ 25 years;
• Self-cleaning property: The surface fluorine resin coating makes it difficult for dust to adhere, and it can be cleaned by rainwater;
• Light transmission: Visible light transmittance is 10%-20%, balancing lighting and shading, reducing air conditioning energy consumption.

Auxiliary System:

Equipped with an intelligent drainage system (membrane surface water drainage + downspout), a wind-resistant membrane reinforcement system (to withstand strong wind loads), and a fireproof insulation layer (the membrane material is internally equipped with fire-resistant core material, with a fire resistance limit of ≥ 1.5 hours).

​Professional Sports Venues​:

Capable of hosting international events such as football, track and field, and rugby, meeting the standards of FIFA and IAAF; equipped with an athlete rest area, media center, VIP booths, and supporting electronic scoreboard, audio and lighting systems.

Cultural Tourism and Entertainment Complex:

Converted into a large-scale live performance venue, it utilizes the large-span space to build a 360° rotating stage and a movable viewing platform. Combined with AR/VR technology, it creates an immersive entertainment show, becoming a traffic engine for "cultural tourism + sports".

Urban Vitality Landmark:

As the core building of the city square, it hosts various events such as concerts, exhibitions and markets, stimulates the surrounding commercial activities, hotels and transportation facilities, and promotes the economic development of the area.

1. Over 5,000+ cooperative cases validate reliability
2. Full-chain services ranging from market research to operation management
3. Products are exported to over 10 countries worldwide (such as the US, Japan, Germany, UK, etc.)
4. Complete product system and certification qualifications
5. Large-scale and massive production capacity
6. Specializing in non-standard customized amusement equipment, with outstanding ability in personalized solution design.

1. Q: What is the complete cooperation process like?

A: Consultation -> Provide requirements -> Obtain quotations and solutions -> Confirm and pay the deposit -> Design confirmation -> Production and QC -> Pay the final payment -> Delivery -> After-sales support.

2. Q: How is the installation service charged?

A: If we need to send personnel for installation, you will have to bear the travel, accommodation and visa expenses of the engineers, as well as the installation service fee.

3. Q: How is the transportation cost calculated?

A: The shipping cost is calculated based on weight and distance. You can check the reference prices on the official websites of DHL/UPS/FedEx. The costs for sea or air transportation need to be calculated according to the actual situation.

4. Q: What trade terms are accepted?

A: We accept various methods such as EXW (factory delivery), FOB (free on board), CFR, CIF, FAS, etc. EXW is usually a more economical choice for both parties.

5. Q: Can custom designs be provided?

A: Yes, we support OEM/ODM. Please send us your detailed requirements, sketches or ideas via email. We will provide you with design drawings and the best quotations.

6. Q: Why choose our company?

A: We have fast and affordable logistics, complete services from design to after-sales, advanced imported production equipment, a professional team, environmentally friendly materials, low minimum order quantity, OEM/ODM support, and a strict quality control system.
