Outdoor Architecture Tensile Membrane Structure Steel Membrane Structure

The steel membrane structure is a large-scale outdoor covering system that perfectly integrates modern architectural mechanics, landscape aesthetics, and practical functions. Its design inspiration comes from the surging waves and the stretching of sails. With smooth arc-shaped lines, pure white tones, and an expansive sense of space, it provides a top-level covering solution for outdoor spaces such as amusement parks, water parks, and commercial complexes, featuring visual landmark value, all-weather applicability, and outstanding functionality.

Double-peak Wave Shape: The steel membrane structure roof presents a continuous and smooth double-wave arc shape, like the surging of waves, which is highly dynamic and visually compelling

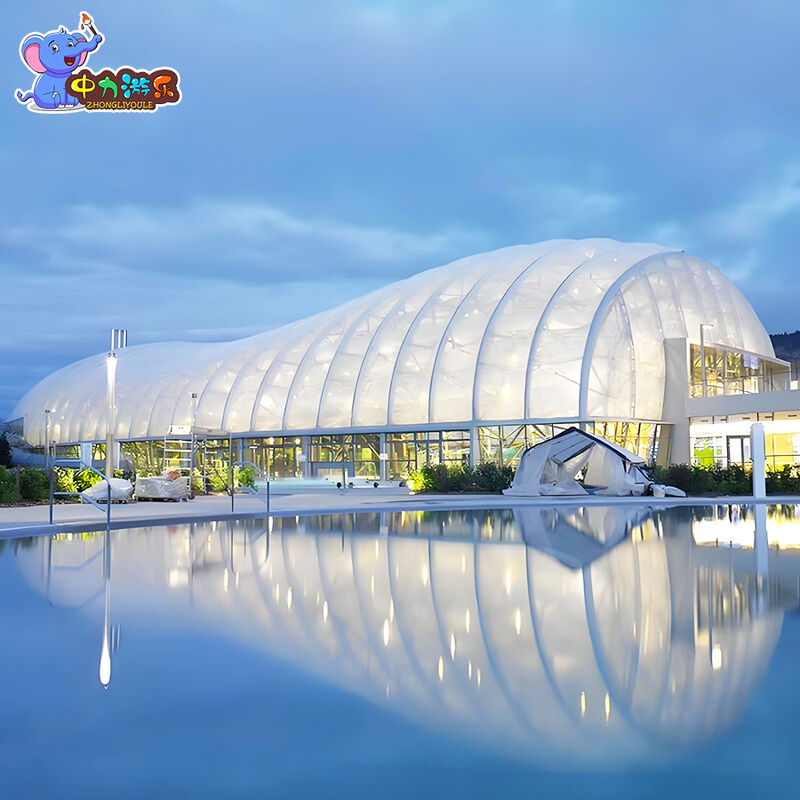

Full Symmetrical Mirror-Aesthetic: A mirror-like water area is set in the front of the steel membrane structure, achieving a perfect symmetry between the building and its reflection. During the day, it resembles a white sail reflecting in the water, and at night, under the lights, it appears even more dreamy

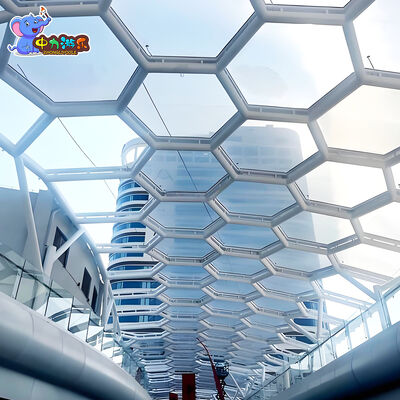

Light and Transparent Texture: The steel membrane structure uses high light-transmitting PTFE or ETFE membrane materials. The light is soft and diffused, making the interior space bright and spacious. The column-free design maximizes the release of ground space

High-strength steel frame structure: The main body of the steel membrane structure is made of Q345B high-strength steel, which has undergone anti-corrosion and rust-proof treatment. The wind resistance grade reaches level 12, and the seismic fortification intensity is 8 degrees.

Intelligent drainage system: The curved roof of the steel membrane structure is hidden with water drainage channels. Rainwater flows naturally along the curved surface and is discharged without any water accumulation risks.

Adaptive temperature design: The membrane material of the steel membrane structure has excellent thermal performance. It provides insulation in summer and heat preservation in winter, with an internal temperature difference of 3-5℃ lower than the external temperature.

All-weather operation coverage: The steel membrane structure provides shade, rain protection, and snow protection for the below-ground amusement facilities, extending the service life and operation time of the equipment

Open-air activity space: The steel membrane structure can be used as an open-air theater, music festival venue, or market activity space, achieving "one structure for multiple uses"

Nighttime lighting carrier: The surface of the steel membrane structure can incorporate LED point lights, and through programming, dynamic light shows can be realized to create a nighttime tourist attraction landmark

Structural Type:

Large-span Double Curved Steel Membrane Structure

Common Span:

30-60 meters (customizable for larger spans)

Common Height:

12-25 meters (peak height)

Coverage Area:

500-3000 square meters (single structure)

Membrane Material Options:

PTFE (Permanent Building)/ PVC (Temporary Building)/ ETFE (High Light Transmittance)

Light Transmittance:

PTFE 10-15%, ETFE up to 95%

Wind Resistance Grade:

12 (≥ 150 km/h)

Fire Resistance Grade:

B1 (Non-combustible Material)

• Professional survey and design: Unmanned aerial vehicle terrain mapping + 3D dynamic simulation + landscape integration solution
• Modular production and installation: Factory prefabrication + on-site assembly, minimizing environmental impact
• Operation training system: Complete training including safe operation, service procedures, and emergency handling
• Long-term maintenance and support: Maintenance, lifetime technical support, annual comprehensive inspection

1. Specializing in non-standard customized amusement equipment, with outstanding capabilities in personalized solution design.
2. The total area of the modern factory is 50,000 square meters.
3. Complete product range and certification qualifications
4. Products are exported to over 10 countries worldwide (such as the United States, Japan, Germany, the United Kingdom, etc.)
5. One-stop solution
6. Verified reliability through 5000+ cooperation cases

• Q: What is the complete cooperation process like?

  A: Consultation -> Provide requirements -> Obtain quotations and solutions -> Confirm and pay the deposit -> Design confirmation -> Production and QC -> Pay the final payment -> Delivery -> After-sales support.

• Q: Do you offer installation services?

  A: We provide professional installation services and have an experienced global installation team. However, the installation cost needs to be calculated separately and is not included in the product quotation.

• Q: How are transportation costs calculated?

  A: Courier fees are calculated based on weight and distance. You can check the reference prices on the websites of DHL/UPS/FedEx. Sea/air transportation costs need to be calculated based on the actual situation.

• Q: What trade terms do you accept?

  A: We accept EXW (factory delivery), FOB (freight on board), CFR, CIF, FAS, etc. EXW is usually a more economical choice for both parties.

• Q: Can the size and color be changed according to the original content?

  A: Yes, the size and color of the product can be customized according to your specific requirements.

• Q: Can I get your product catalogue?

  A: Of course. Please contact us at any time and we will immediately send you the latest product catalogue.
